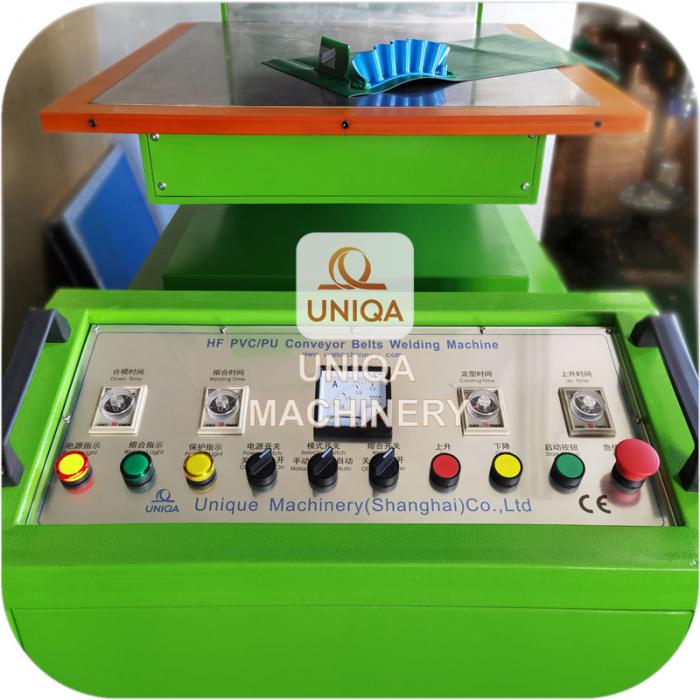

Name:HF cleat & side wall welding machine
Welding size:700x800mm
Max. cleat welding:700mm
Max. side wall welding:600mm
Welding time:30-50s

Product Description

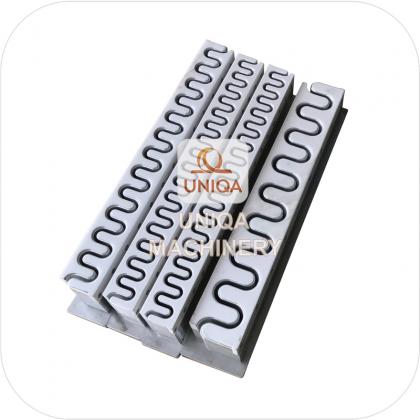

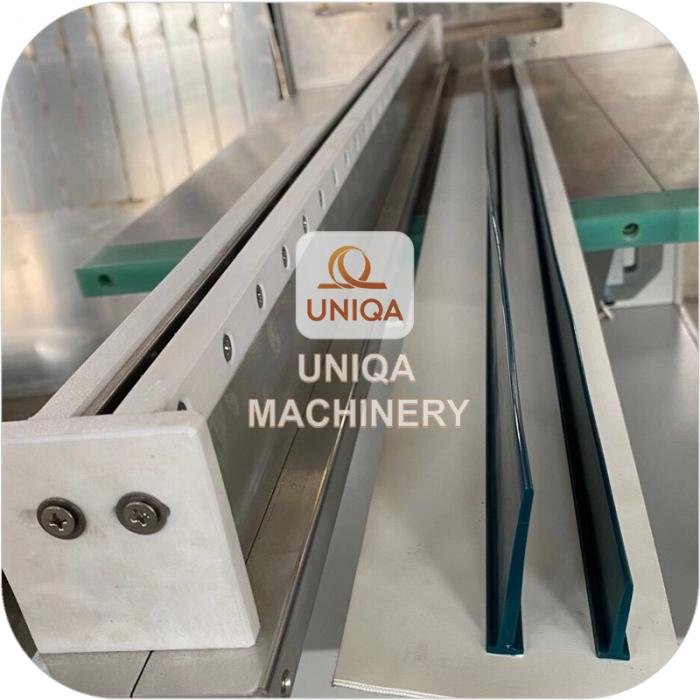

Unique high frequency welding machine is special for pvc/tpu cleat, side wall welding.

Mahcine configurations:

uElectronic tubes:TOSHIBA  uSpark protection plate:NL5557

uPower relay: OMRON            uTime relay: OMRON

uA.C contactor: Mitsubishi       uAir switch: Mitsubishi

uAir cylinder: Airtac                       uPress-button:  Taiwan AP

uCounter:  Taiwan ANLY          u0il-water separator solenoid valves: AirTAC

uHigh frequency power output shielding: whole machine protection

Technical datas:

Model

UQ-12000T

HF output

12KW

Power input

18KVA

Voltage

380V,3 A.C.

Frequency value

27.12MHZ

Rectifier

Silicon diode

Power Type

Pneumatic

Upper plate size

400*650

Bottom plate size

800*800

Upper plate Max.rise

170mm

Machine size

1200*860*2000mm

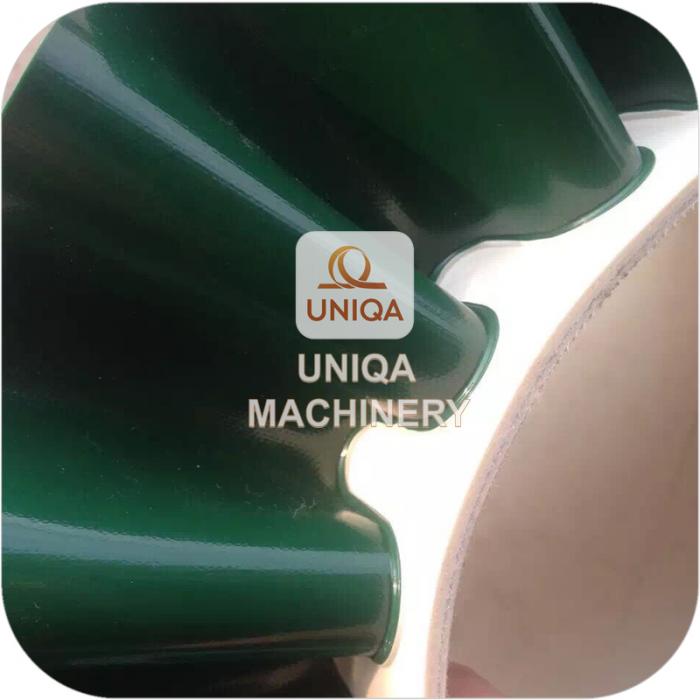

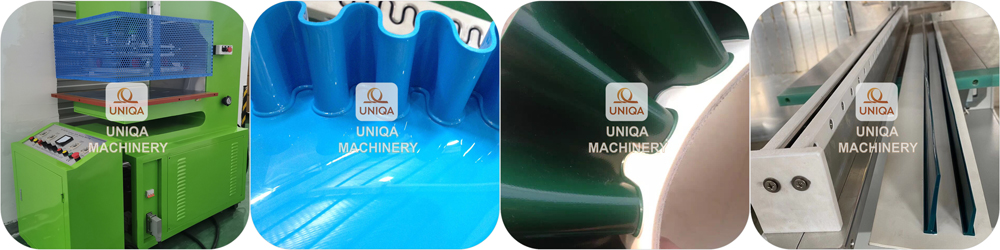

welding samples -HF-2-1.jpg
