I. Unique air cooled press machine
Air cooled all-in-one designed splicer is the new generation of splice equipment for belt
joint splicing both on site and in the workshop.Unique air cool splicing press is less weight,
less set-up time, and very short splicing time.
Standrad joint size:
II. Machine features
01. Integrated type cooling system, no need cooling water.
02. Easy to move in luggage box. suitable for belts joint at site.
03. Fast welding and cooling: whole working process within 7-15mins.
04. One-piece equipment, no external component. Easy to installation and operation.
III. Technical Parameter
01. Model : UQ-A1200
02. Power: 5.8KW
03. Voltage: 110/220/380/440/
04. Effective Joint size: 1200*130 (48"*5.1")
05. Machine dimension: L1405*W250*H220mm
06. Net weight：78kG

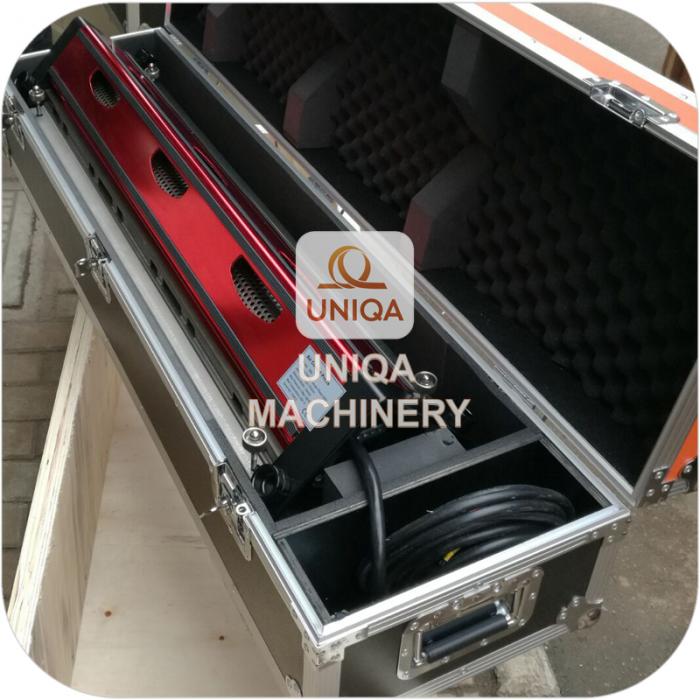

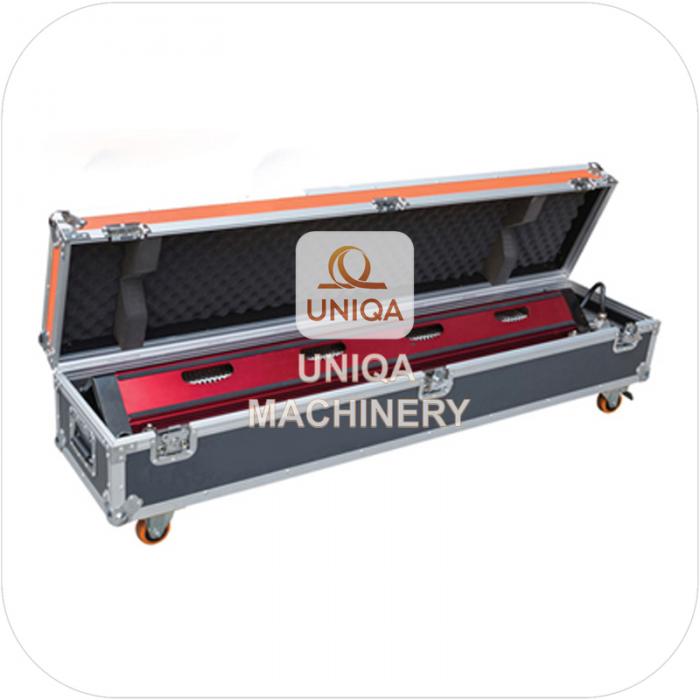

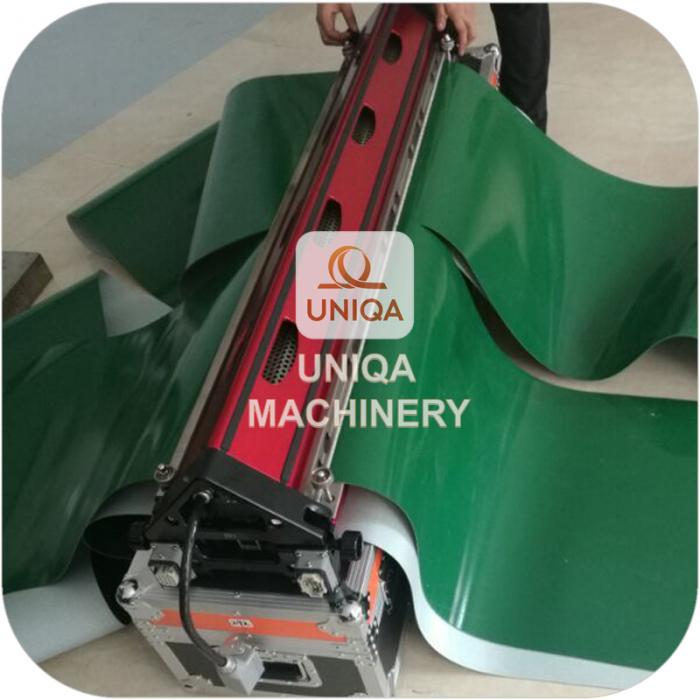

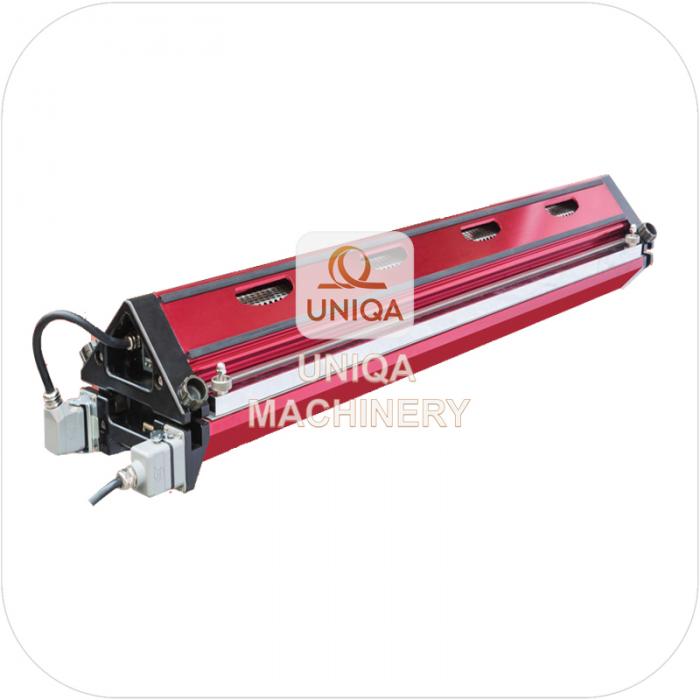

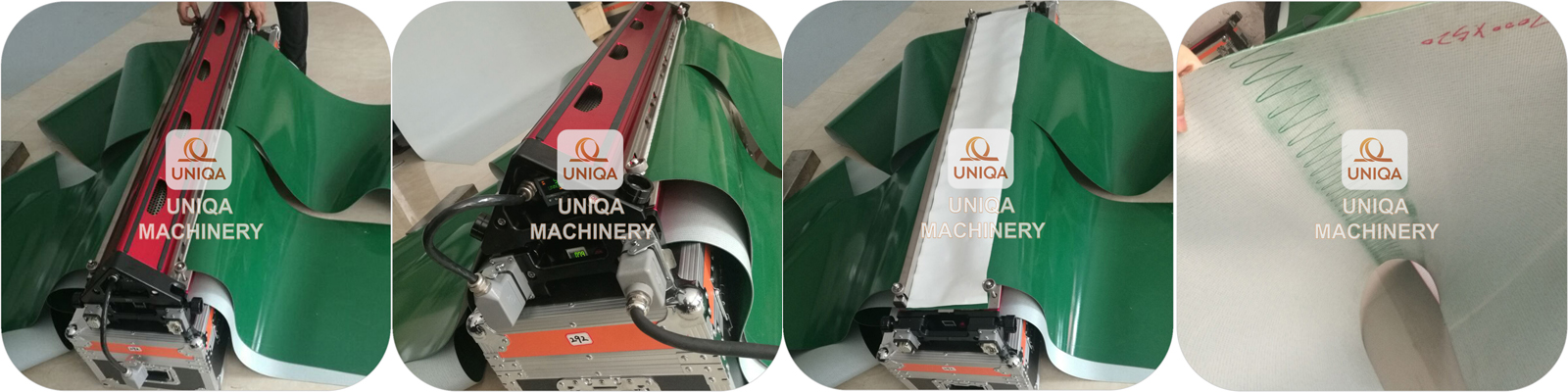

IV. Machine & joint samples photos
