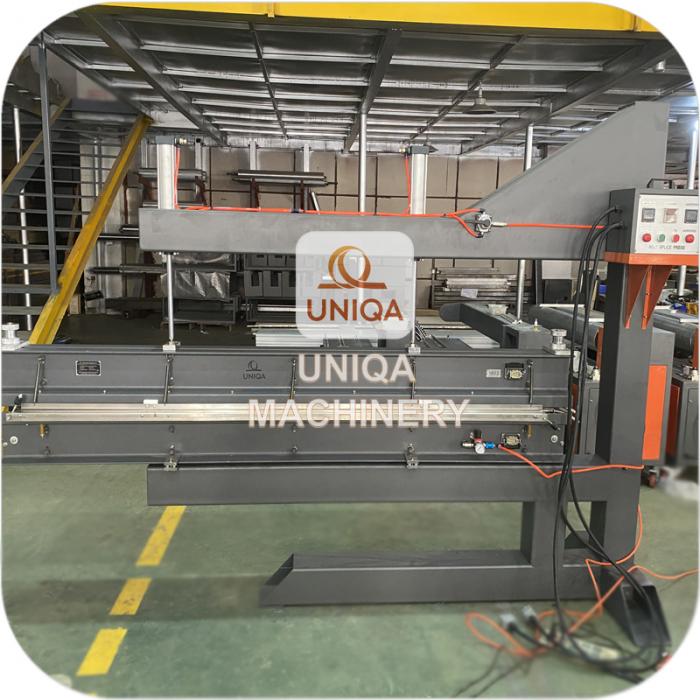

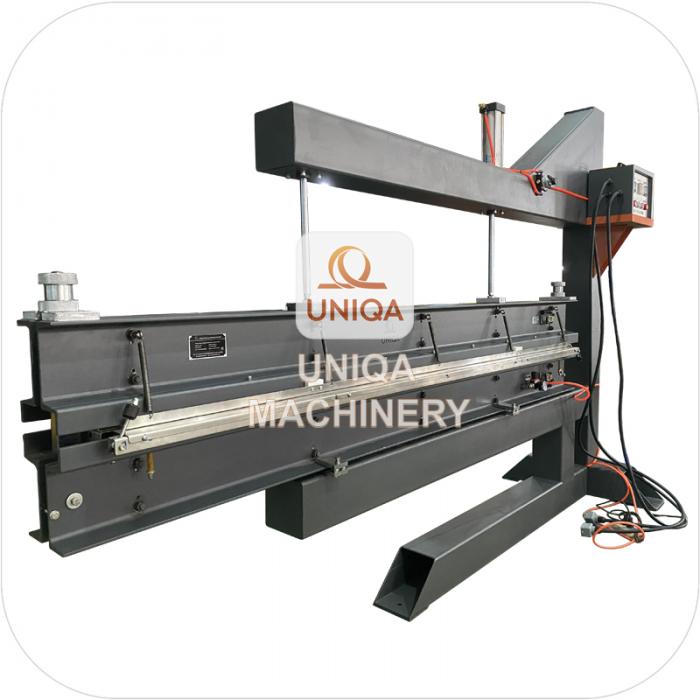

|Name:||Water cooled press-2100|
|Voltage:||110/220/380/440V, 3 A.C.|
|Body structure:||Aluminium alloy|
Whole automatic process：Aluminium alloy body
Press the button Auto-Start
→Pressure the start button-pressure goes up
→Temp goes up
→ Temp holding period of time for welding at setting Temp
→ Auto-cooling and pressurerelease
→ Finish Indicator sounds.
Information for operation:
Temperature growing from 0 to 170 degrees takes 16min (without interval during the process).
Cooling from 170 to 60 degrees takes 4min. Temp difference between upper heating plate and
lower heating plate 3degrees. Four stages for temp setting to meet the requirement of different
types of belt jointing. Functional especially for thick belts.
