Name:1500mm Hole Punching Machine
Model:UQ-1500HPS
Voltage:220V, 1 phase(or custom made)

Product Description

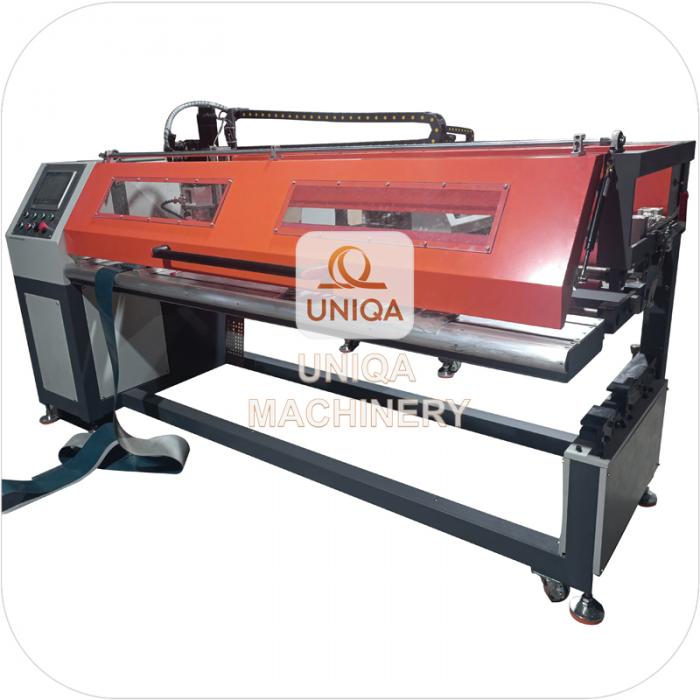

I. PVC/PU/Rubber conveyor belts hole punching machine


Unique automatic holes punching machine can work on very solid and hard PVC/PU/Rubber

belts. Hole punching tools diameter range from 2mm to 10mm.


II. Fully automatic

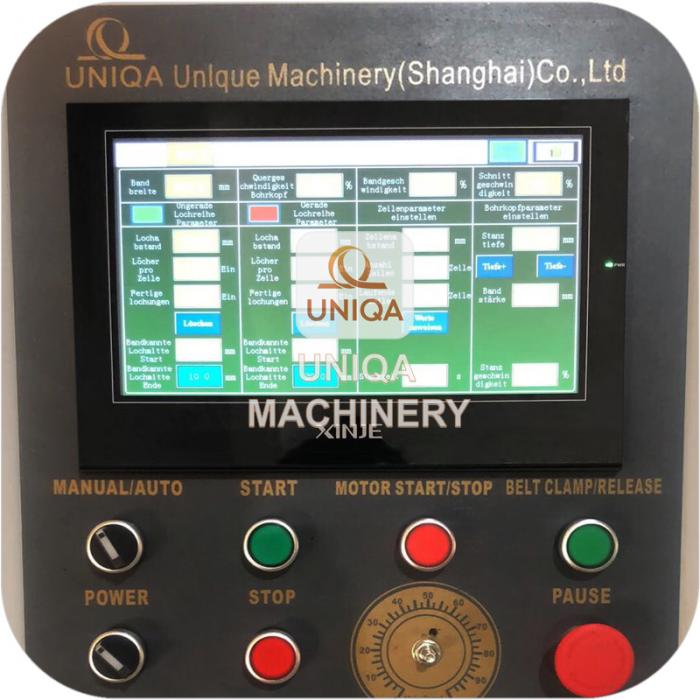

Machine setting(hole distance and number…) is programmable. PLC touch screen control whole

working process.


III. Main specification


Effective roller width: 500,1000,1500, 2000mm or customized

Maximum length of belt: unlimited

Minimum length of belt: 500mm

Maximum perimeter of belt: unlimited

Minimum perimeter of belt: 600mm

Power: 3.5KW

High pression : +- 0.05mm ( can see from the photos, clients’ purpose is 7mm)

Application: open and endless pvc pu rubber belt

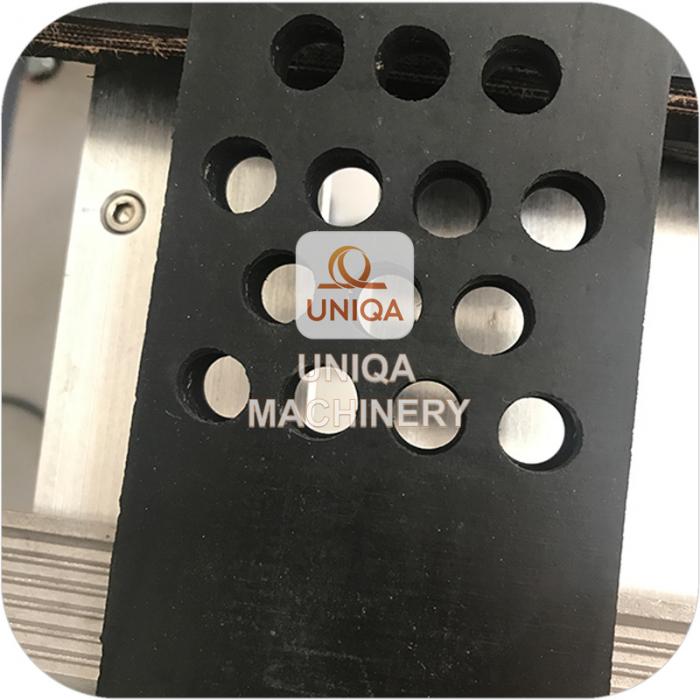

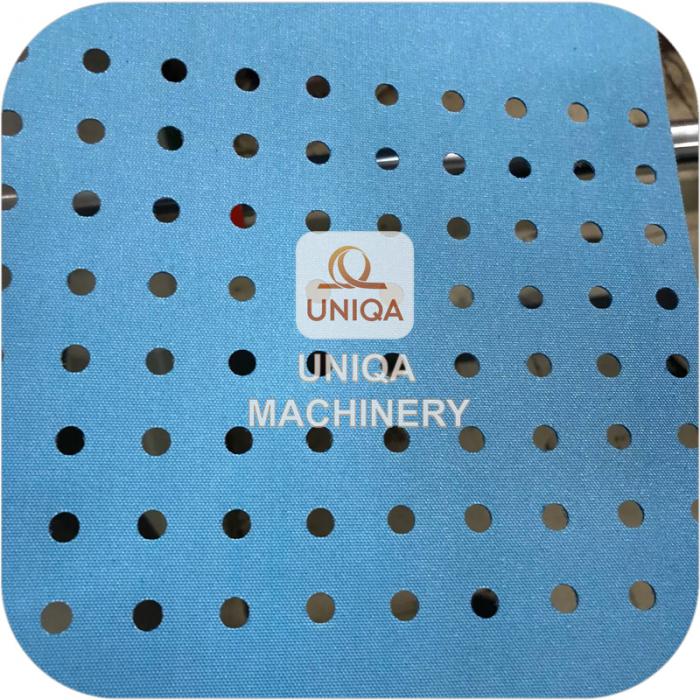

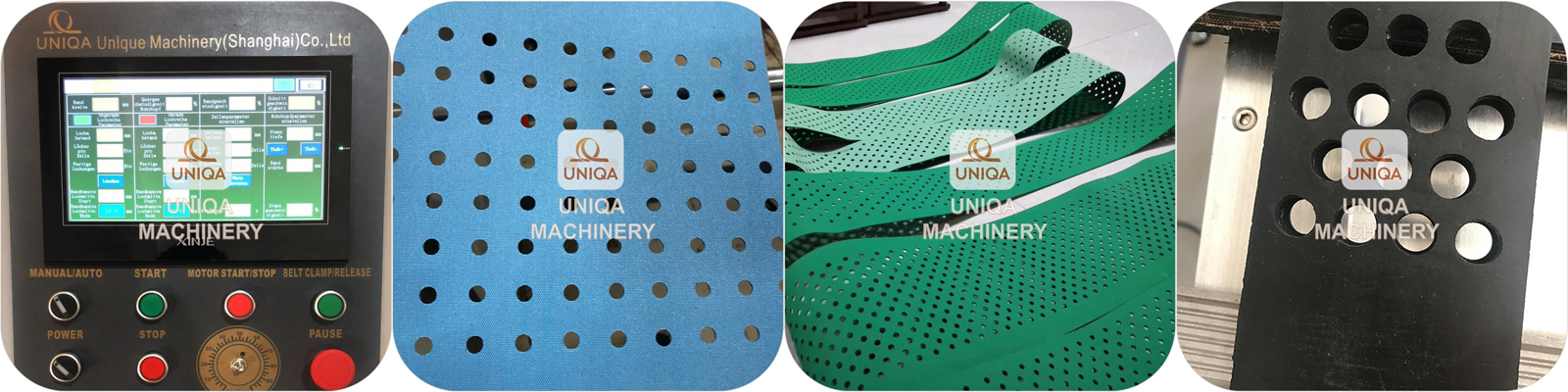

IV.  Machine & punching samples
