Name:Timing Belts Cutting Machine
Model:UQ-C530A
Operation way:PLC Touch screen

Product Description

I. Machine description--PLC control Auto Type

UQ-C530A transmission belts cutting machine is special for pvc/tpu endless belts cutting,

menawhile, it is also suitable for timing belts cutting. Machine adopts PLC touch screen

control system, operation is simple and convenient.


II. Technical parameters:

Model: UQ-C530A

Voltage: 220V, 1 phase.

(or custom made)

Machine Power: 3.0KW

Maximum Belt Width: 500mm

Maximum Length : 4500mm

Minimum Length: 200mm

Minimum Width: 3mm

High cutting accuracy ±0.3mm


III. Features & advantages

01. PLC Touch screen control.

02. Cutting speed and cutting width digital dispaly.

03. Transmission belts and timing belts cutting

04. High Precise Sltting.cutting, cutting error +-0.1mm.

05. Japan Exported Servo Motor, high working precision.

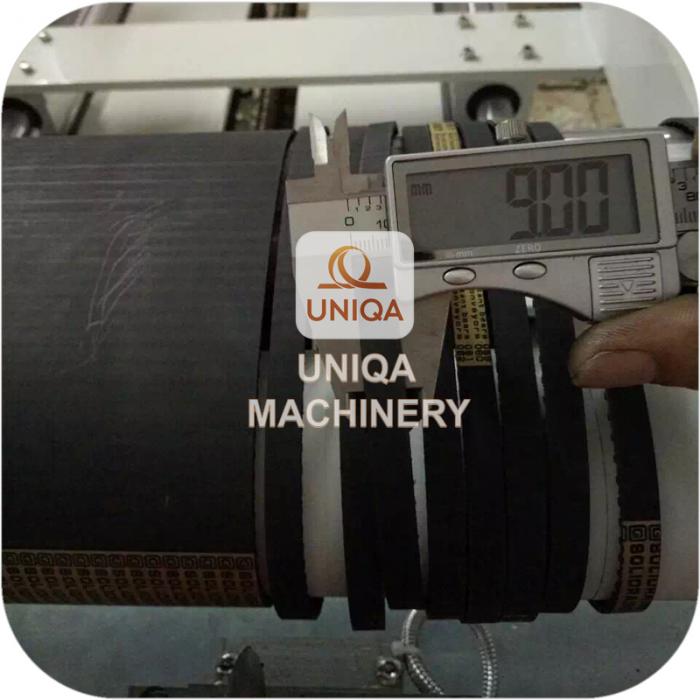

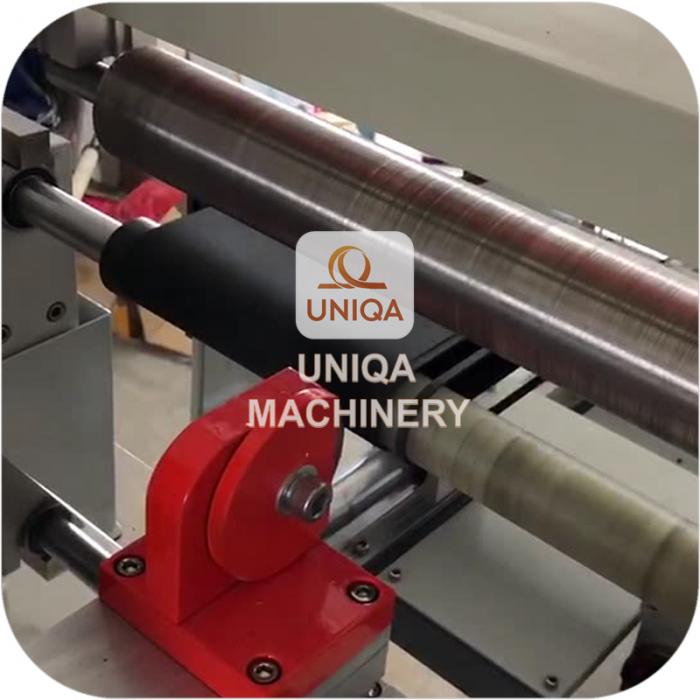

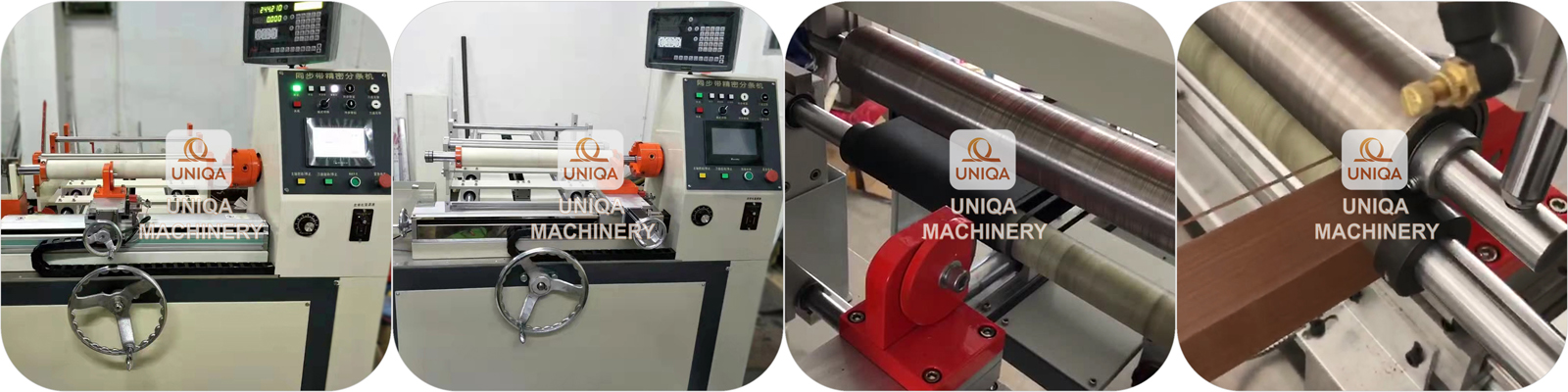

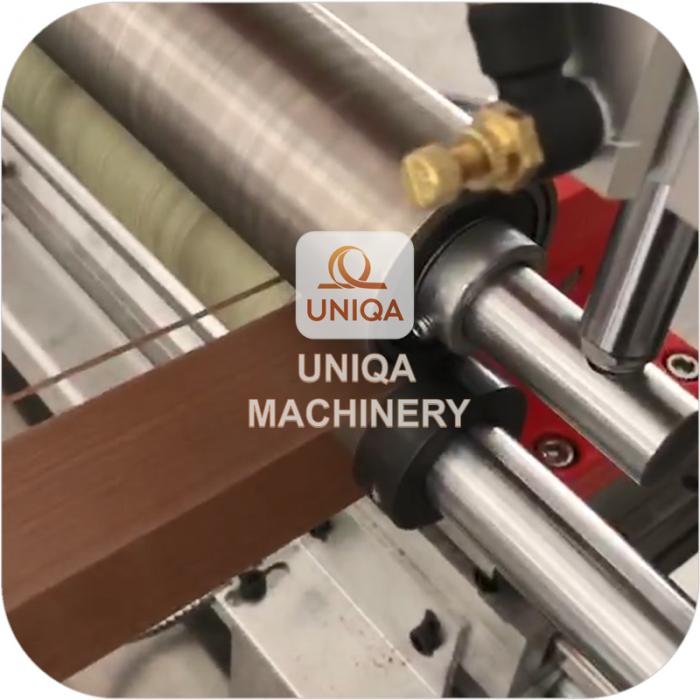

IV.Machine & Slitting Samples

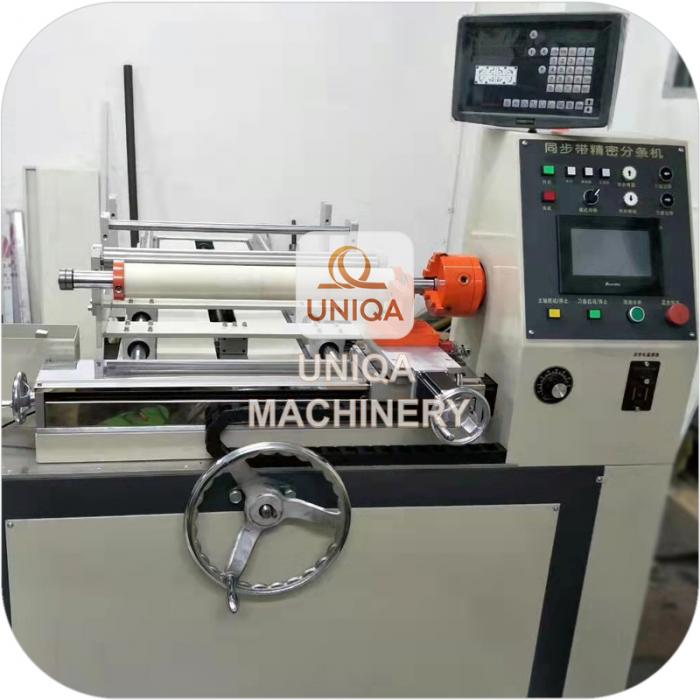

timing belts cutting machine.jpg
